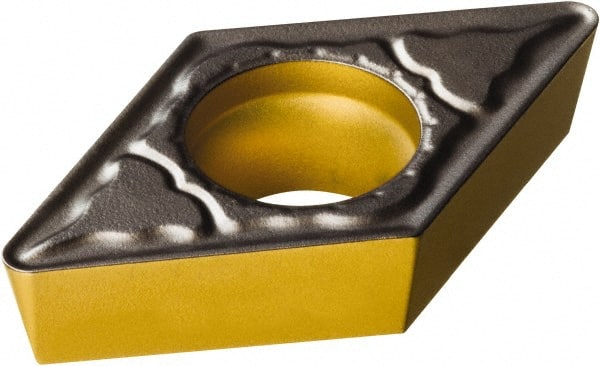

Sandvik Coromant - DPMT32.51 PM Grade 4325 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 52072915
Brand: Sandvik Coromant
Model #: 6434029
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DPMT |
| Insert Size | 32.51 |
| Material | Carbide |
| Length (mm) | 11.23 |
| Length (Decimal Inch) | 0.4420 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | PM |
| Insert Length (Decimal Inch) | 0.4420 |
| OverallLength (mm) | 11.63 |
| Overall Length (Decimal Inch) | 0.4578 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | DPMT 11 T3 04-PM 4325 |
| Relief Angle | 11 |
| Included Angle | 55 |
| Insert Holding Method | Screw |
| Shape | Diamond |
