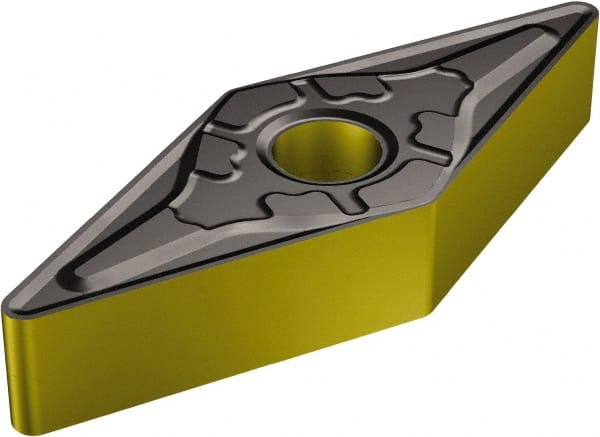

VNMG332-KM 3205 Carbide Turning Insert TiCN/AI2O3/TiN Finish, 15.81mm Long, 3/8″ Inscribed Circle, 1/32″ Corner Radius, Diamond
Item #: 52076171
Brand: Sandvik Coromant
Model #: 5756080
Product Specifications
| Insert Style | VNMG |
| Insert Shape Code | V |
| Insert Size Code | 332 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 3205 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6223 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | VNMG332KM3205 |
| Iso Code | VNMG 16 04 08-KM 3205 |
| Chip Breaker | KM |
| Coating/Finish | TiCN; TiN; AI2O3 |
 | |
| MSC Part # | 52076171 |
| Mfr Part # | 5756080 |
