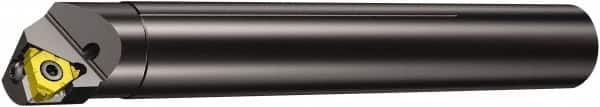

Sandvik Coromant - Internal/External Thread, Right Hand Cut, 3/8" Shank Width x 9.13mm Shank Height Indexable Threading Toolholder - 6" OAL, R166.0L-11 Insert Compatibility, R166.0KF..C Toolholder, Series T-Max U-Lock
Item #: 52078169
Brand: Sandvik Coromant
Model #: 5741942
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal/External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Shank Width/Diameter (Inch) | 3/8 |
| Shank Height (mm) | 9.13 |
| Shank Height (Decimal Inch) | 0.3594 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Insert Compatibility | R166.0L-11 |
| Series | T-Max U-Lock |
| Toolholder Style | R166.0KF..C |
| Through Coolant | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (Inch) | 6 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Center to Cutting Edge (mm) | 7.49 |
| Center to Cutting Edge (Decimal Inch) | 0.2950 |
| Neck Diameter (Decimal Inch) | 0.3750 |
| Head Length (Inch) | 2-1/4 |
| Head Length (Decimal Inch) | 2.2500 |
| Shank Length (Inch) | 6 |
| Shank Length (Decimal Inch) | 6.0000 |
| Maximum Bore Depth (Decimal Inch) | 2.2500 |
| Minimum Bore Diameter (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
