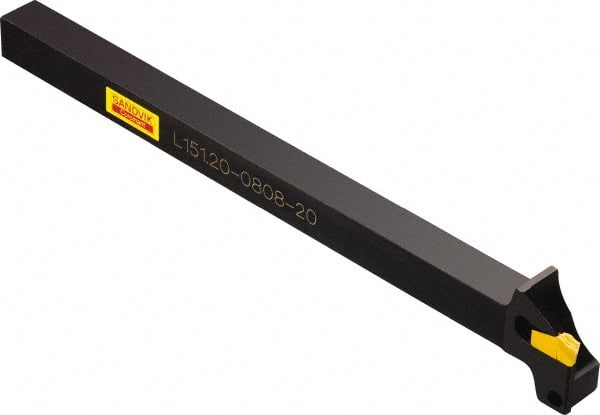

Sandvik Coromant - 22.5mm Max Depth, 3mm to 4.15mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder
Item #: 52084977
Brand: Sandvik Coromant
Model #: 5734427
Product Specifications
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 22.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.8860 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 4.15 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (mm) | 114.30 |
| Series | T-Max? Q-Cut |
| Toolholder Style | R/L151.20 |
| Insert Compatibility | N151.2-300-5E |
| Shank Height (mm) | 19.05 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Self Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.5000 |
| Head Height (mm) | 19.05 |
| Head Height (Decimal Inch) | 0.7500 |
| Head Length (mm) | 19.05 |
| Head Length (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 3.2600 |
| Shank Length (mm) | 82.80 |
| Manufacturers Catalog Number | L151.20-12-30A |
| Insert Seat Size | 30.0 |
