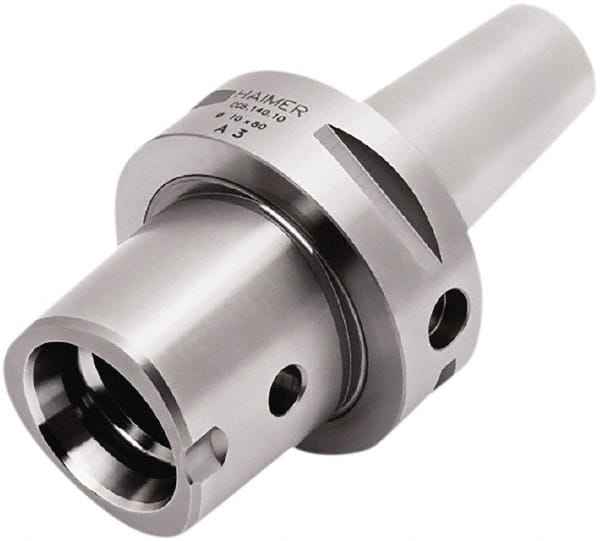

HAIMER - 10mm Hole Diam, C6 Taper Shank Shrink Fit Tool Holder & Adapter - 100mm Projection, 24mm Nose Diam, 42mm Clamping Depth, 25,000 RPM
Item #: 52177128
Brand: HAIMER
Model #: CC6.141.10
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Modular Connection Size | C6 |
| Hole Diameter (Decimal Inch) | 0.3937 |
| Hole Diameter (mm) | 10.00 |
| Projection (mm) | 100.00 |
| Projection (Decimal Inch) | 3.9370 |
| Nose Diameter (mm) | 24.00 |
| Nose Diameter (Decimal Inch) | 0.9449 |
| Through Coolant | No |
| Clamping Depth (mm) | 42.00 |
| Clamping Depth (Decimal Inch) | 1.6535 |
| Balanced to (RPM) | 25000 |
| Series | Standard |
