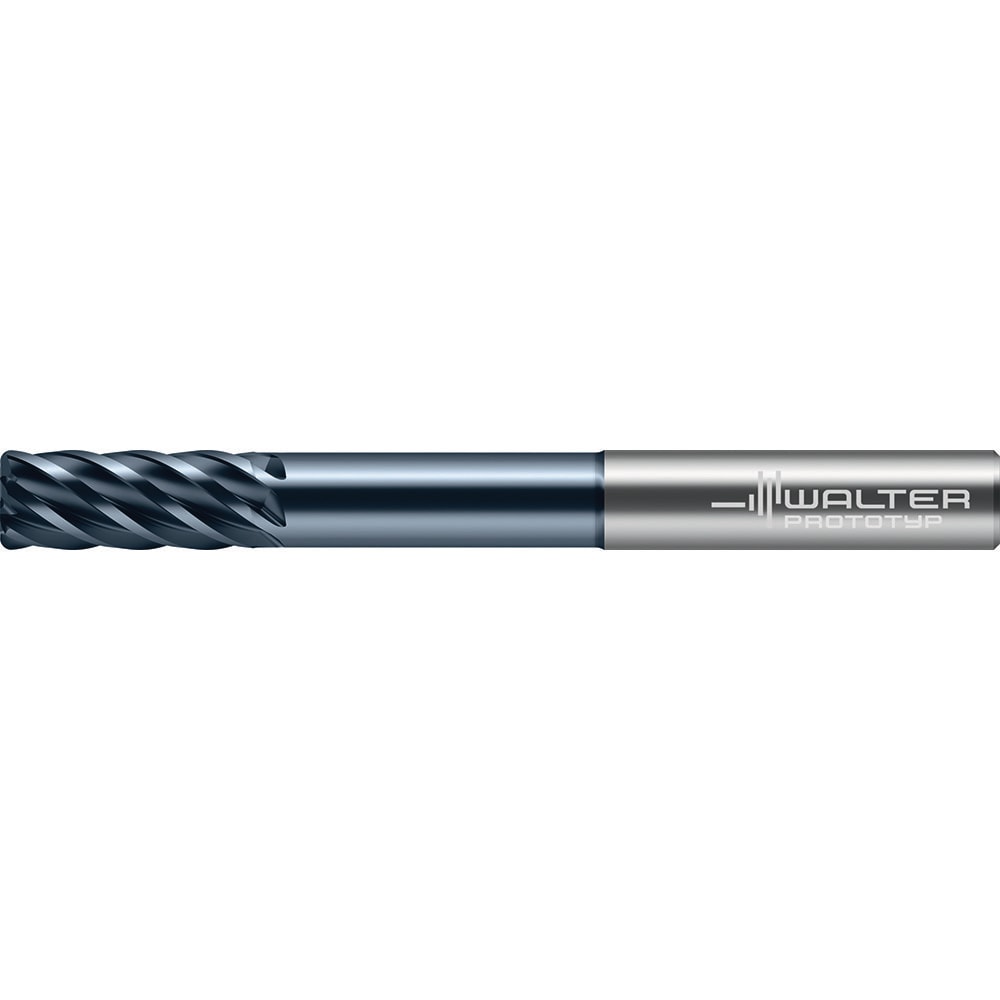

Square End Mill: 0.5000" Dia, 3.0000" LOC, 6 Flute, Solid Carbide
Item #: 55400618
Brand: Walter-Prototyp
Model #: 8417132
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 3.0000 |
| Length of Cut (Inch) | 3 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 38 |
| Primary Workpiece Material | Super Alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Coating/Finish | nACRo |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Cylindrical |
| Material Grade | Solid Carbide |
| Length Type | Standard |
| Neck Diameter (Decimal Inch) | 0.4750 |
| Reach Length (Decimal Inch) | 3.0000 |
| Shank Diameter Tolerance | h6 |
| Series | MA377 |
| UNSPSC Code | 27112803 |
