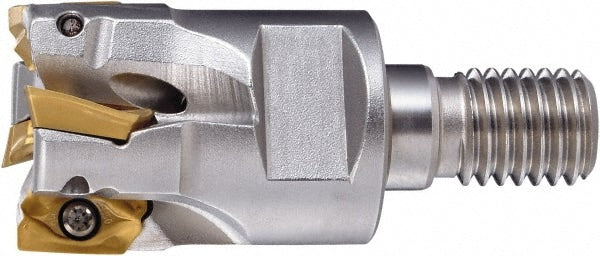

Indexable Square-Shoulder End Mill: PSE15R035SF16-3, 35 mm Cut Dia, 40 mm Max Depth of Cut, M16 Modular Connection Shank
Item #: 55703060
Brand: OSG
Model #: 7801610
Product Specifications
| Cutting Diameter | 1.3780 in |
| Cutting Diameter (mm) | 35.00 |
| Overall Length (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 40.00 |
| Cutter Style | PSE |
| Shank Type | Modular Connection |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 78016 |
| Lead Angle | 90 |
| Head Length (mm) | 40.00 |
| Modular Connection Size | M16 |
| Insert Compatibility | PFR? |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Cutting Diameter | 1.3780 in |
| Cutting Diameter (mm) | 35.00 |
| Overall Length (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 40.00 |
| Cutter Style | PSE |
| Shank Type | Modular Connection |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 78016 |
| Lead Angle | 90 |
| Head Length (mm) | 40.00 |
| Modular Connection Size | M16 |
| Insert Compatibility | PFR? |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| MSC Part # | 55703060 |
| Mfr Part # | 7801610 |
| Country of Origin Country of Origin is subject to change | Japan |
