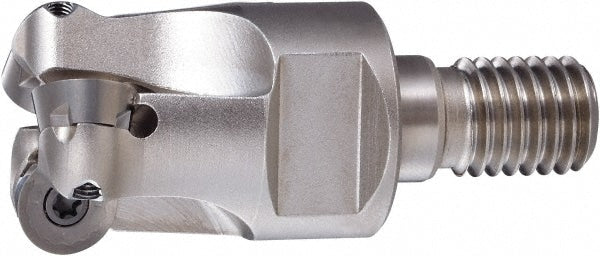

Indexable Copy End Mill: 40 mm Max Depth of Cut, Through Coolant
Item #: 55703029
Brand: OSG
Model #: 7801707
Product Specifications
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 40.00 |
| Toolholder Style | PRC |
| Shank Type | Modular Connection |
| Compatible Insert Style | PFR? |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (mm) | 40.00 |
| Modular Connection Size | M16 |
| Weldon Flat | No |
| Projection (mm) | 40.00 |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 40.00 |
| Toolholder Style | PRC |
| Shank Type | Modular Connection |
| Compatible Insert Style | PFR? |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (mm) | 40.00 |
| Modular Connection Size | M16 |
| Weldon Flat | No |
| Projection (mm) | 40.00 |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| MSC Part # | 55703029 |
| Mfr Part # | 7801707 |
| Country of Origin Country of Origin is subject to change | Japan |
