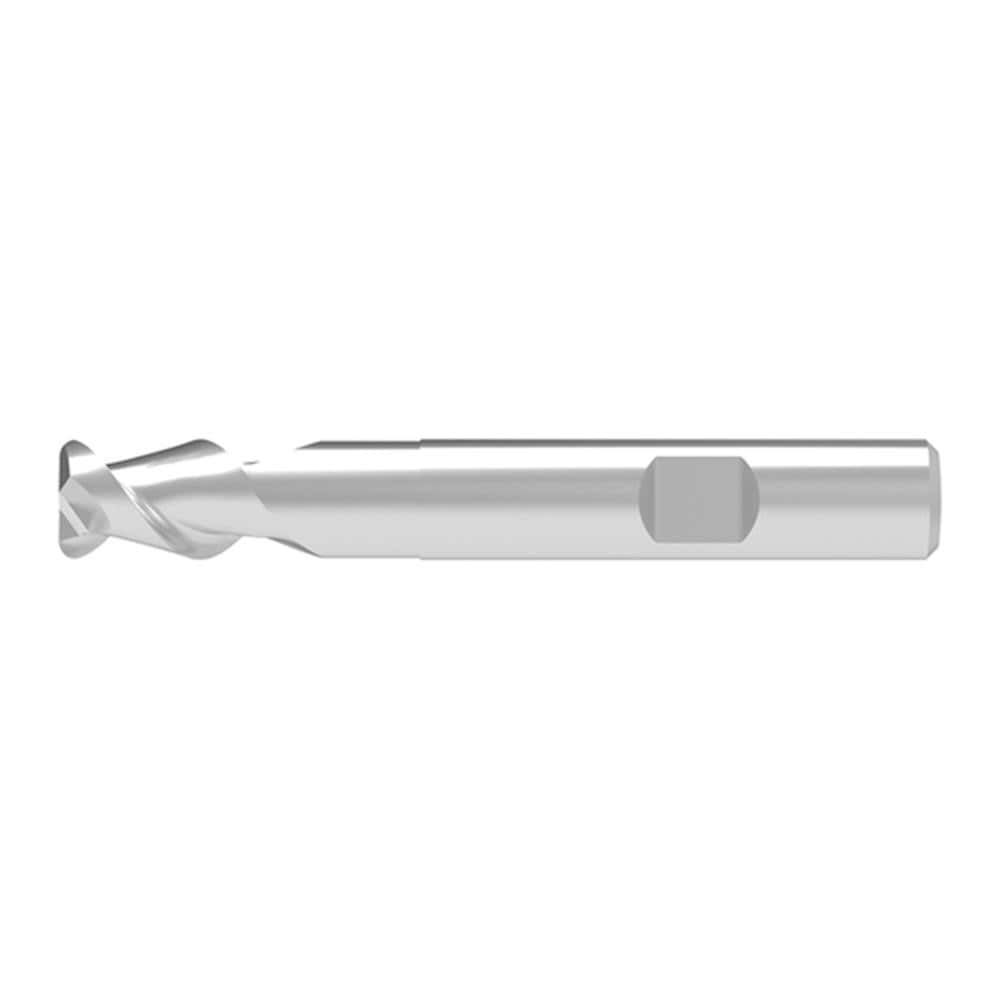

Corner Radius End Mill: 8.00 mm Dia, 13.00 mm LOC, 0.50 mm Radius, 2 Flute, Solid Carbide
Item #: 55037337
Brand: WNT
Model #: 54595083
Product Specifications
| Mill Diameter (mm) | 8.00 |
| Number Of Flutes | 2 |
| Length of Cut (mm) | 13.0000 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | Uncoated |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.50 |
| Overall Length (mm) | 64.0000 |
| End Type | Corner Radius |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 8.0000 |
| Neck Diameter (mm) | 7.700 |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 8.00 |
| Number Of Flutes | 2 |
| Length of Cut (mm) | 13.0000 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | Uncoated |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.50 |
| Overall Length (mm) | 64.0000 |
| End Type | Corner Radius |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 8.0000 |
| Neck Diameter (mm) | 7.700 |
| UNSPSC Code | 27112803 |
| MSC Part # | 55037337 |
| Mfr Part # | 54595083 |
| Country of Origin Country of Origin is subject to change | Germany |
