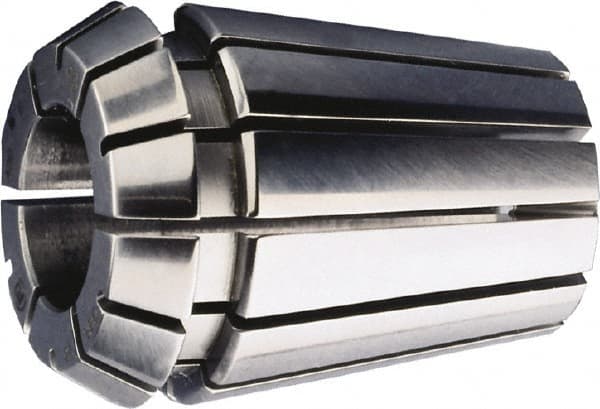

HAIMER - 16 to 17mm ER40 Collet - 0.0002" TIR, 46mm OAL, 41mm Overall Diam
Item #: 52226537
Brand: HAIMER
Model #: 81.400.17
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER40 |
| Size Range (mm) | 17.00 |
| TIR (Decimal Inch) | 0.000200 |
| Minimum Collet Capacity (mm) | 16.00 |
| Minimum Collet Capacity (Decimal Inch) | 0.6299 |
| Maximum Collet Capacity (mm) | 17.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.6693 |
| Overall Length (mm) | 46.00 |
| Overall Length (Decimal Inch) | 1.8110 |
| Overall Diameter (mm) | 41.00 |
| Overall Diameter (Decimal Inch) | 1.6142 |
| Collet System | ER |
| PSC Code | 5136 |
