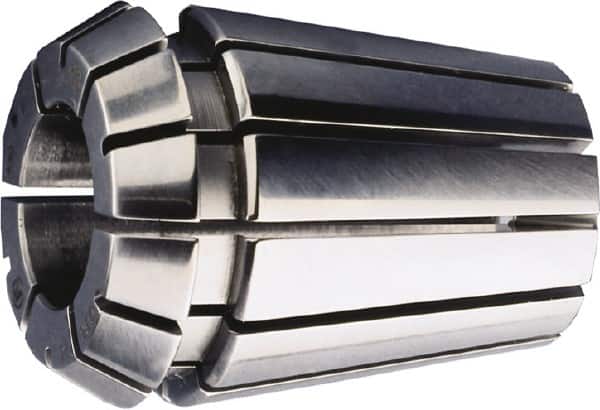

HAIMER - 2.5 to 3mm ER11 Collet - 0.0002" TIR, 18mm OAL, 11.5mm Overall Diam
Item #: 52239282
Brand: HAIMER
Model #: 81.110.3.0
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER11 |
| Size Range (mm) | 3.00 |
| TIR (Decimal Inch) | 0.000200 |
| Minimum Collet Capacity (mm) | 2.50 |
| Minimum Collet Capacity (Decimal Inch) | 0.0984 |
| Maximum Collet Capacity (mm) | 3.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 18.00 |
| Overall Length (Decimal Inch) | 0.7087 |
| Overall Diameter (mm) | 11.50 |
| Overall Diameter (Decimal Inch) | 0.4528 |
| Collet System | ER |
| PSC Code | 5136 |
