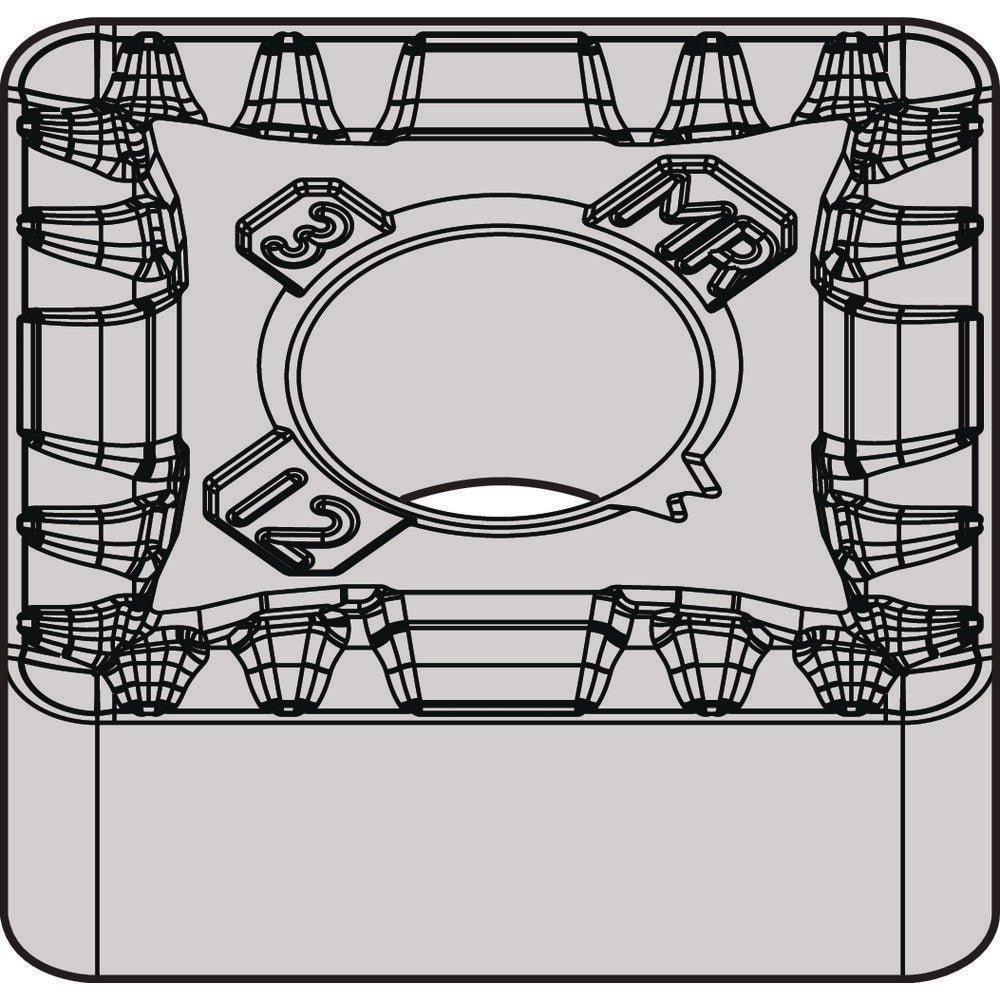

Turning Insert: SNMX190640S-WT5 KCP25C, Carbide
Item #: 84241694
Brand: Kennametal
Model #: 7088031
Product Specifications
| ANSI Insert Code | SNMX |
| ISO Insert Code | SNMX |
| Relief Angle | 0.000 |
| Insert Style | SNMX |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Inch) | 5/32 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Included Angle | 90.00 |
| Manufacturer Grade | KCP25C |
| Coating/Finish | MT-TiCN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness | 6.35 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | Screw-On Inserts |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (mm) | 19.05 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Side Clearance | Negative |
| Number Of Cutting Edges | 8 |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.3500 |
| Insert Holding Method | Pin; Screw |
| Width (Inch) | 3/4 |
| Clearance Code | N |
| Tolerance Code | M |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.7500 |
| Insert Length (Inch) | 3/4 |
| Insert Length (mm) | 19.05 |
| Chip Breaker | WT5 |
| Rake Angle | -14 |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Width (mm - 2 Decimals) | 19.05 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1906 |
| Country of Origin | UNITED STATES |
