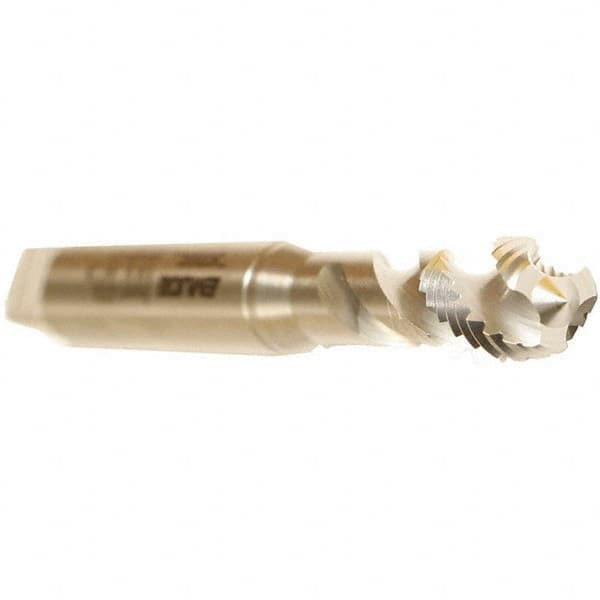

Emuge - M5x0.80 Metric 3 Flute 6G Bottoming Spiral Flute Tap - Cobalt, Bright Finish, 50mm OAL, Right Hand Flute, Right Hand Thread, Series Enorm
Item #: 52283983
Brand: Emuge
Model #: A0511020.0050
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M5x0.80 |
| Chamfer | Bottoming |
| Class of Fit | 6G |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 50.00 |
| Helix Angle | 35 |
| Thread Standard | Metric |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.3543 |
| Thread Length (mm) | 9.00 |
| Flute Type | Medium Spiral |
| Series/List | Enorm |
| Tapping Depth (Decimal Inch) | 0.9843 |
| Tapping Depth (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (Decimal Inch) | 0.9843 |
| Shank Length (mm) | 25 |
| Material Application | Copper Alloys; Steel |
