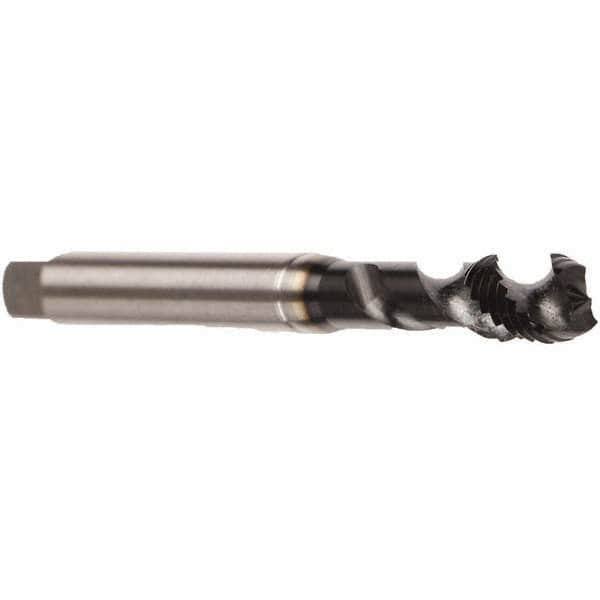

Emuge - M2x0.40 Metric 2 Flute 6H Modified Bottoming Spiral Flute Tap - Cobalt, GLT-8 Finish, 45mm OAL, Right Hand Flute, Right Hand Thread, Series Enorm
Item #: 52284999
Brand: Emuge
Model #: B050S800.0020
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
GLT-8 coatings are diamond-like coatings and provide a hard surface for good thermal protection as well as high surface lubricity. Ideal for machining nonferrous materials and aluminum. GLT-8 is a proprietary coating exclusive to Emuge.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M2x0.40 |
| Chamfer | Modified Bottoming |
| Class of Fit | 6H |
| Number of Flutes | 2 |
| Material | Cobalt |
| Finish/Coating | GLT-8 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 1.7717 |
| Overall Length (mm) | 45.00 |
| Helix Angle | 45 |
| Thread Standard | Metric |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.1575 |
| Thread Length (mm) | 4.00 |
| Flute Type | Fast Spiral |
| Series/List | Enorm |
| Tapping Depth (Decimal Inch) | 0.4724 |
| Tapping Depth (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.1102 |
| Shank Diameter (mm) | 2.80 |
| Shank Length (Decimal Inch) | 1.2992 |
| Shank Length (mm) | 33 |
