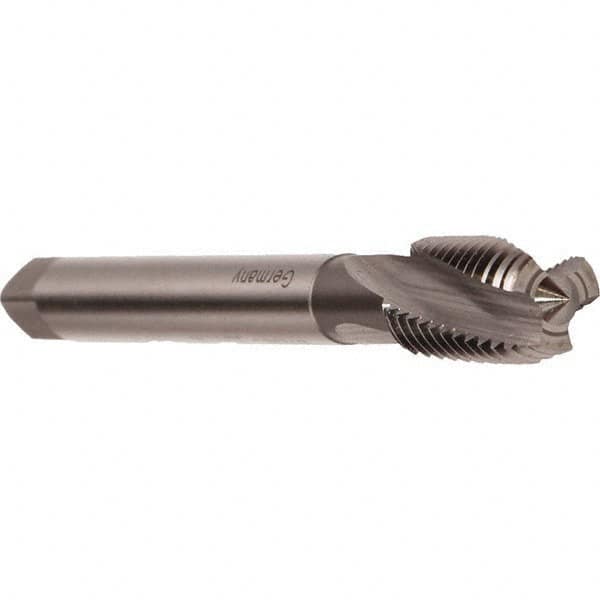

Emuge - M12x1.75 Metric 3 Flute 6H Modified Bottoming Spiral Flute Tap - Cobalt, Bright Finish, 75mm OAL, Right Hand Flute, Right Hand Thread, Series Rekord D
Item #: 52285848
Brand: Emuge
Model #: A0451000.0112
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M12x1.75 |
| Chamfer | Modified Bottoming |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.9528 |
| Overall Length (mm) | 75.00 |
| Helix Angle | 15 |
| Thread Standard | Metric |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.9449 |
| Thread Length (mm) | 24.00 |
| Flute Type | Slow Spiral |
| Series/List | Rekord D |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 9.00 |
| Shank Length (Decimal Inch) | 2.0079 |
| Shank Length (mm) | 51 |
| Material Application | Copper Alloys; Steel |
