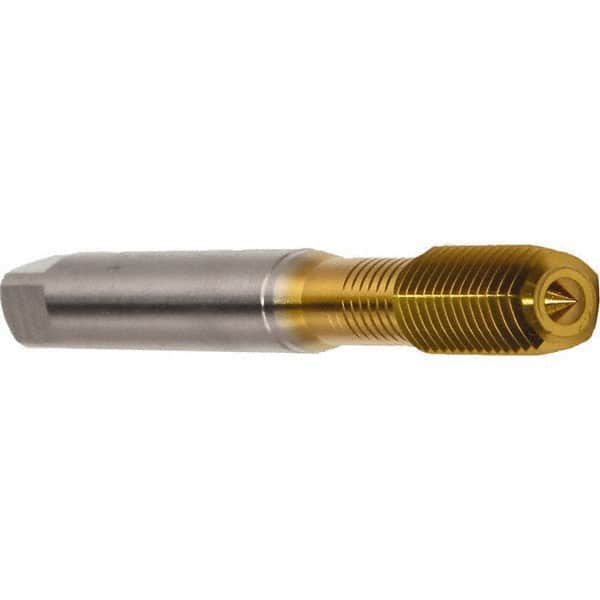

Emuge - M5x0.80 Metric 6HX Modified Bottoming Thread Forming Tap - Cobalt, Chrome Finish, 70mm OAL, 15mm Thread Length, Right Hand Thread, Series Druck
Item #: 52288347
Brand: Emuge
Model #: B0911300.0050
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading to the bottom of blind holes and have 2 to 2-1/2 threads.
Chrome plate is a bright electroplated coating that offer excellent anti-friction properties. It is commonly used on steel, aluminum, brass, copper or other non-chromium materials.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M5x0.80 |
| Class of Fit | 6HX |
| Chamfer | Modified Bottoming |
| Finish/Coating | Chrome |
| Material | Cobalt |
| Overall Length (Decimal Inch) | 2.7559 |
| Overall Length (mm) | 70.00 |
| Thread Standard | Metric |
| Thread Length (Decimal Inch) | 0.5906 |
| Thread Length (mm) | 15.00 |
| Series/List | Druck |
| Tapping Depth (Decimal Inch) | 0.9843 |
| Tapping Depth (mm) | 25 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (Decimal Inch) | 1.77 |
| Shank Length (mm) | 45 |
| Material Application | Aluminum Alloys; Copper; Copper Alloys |
