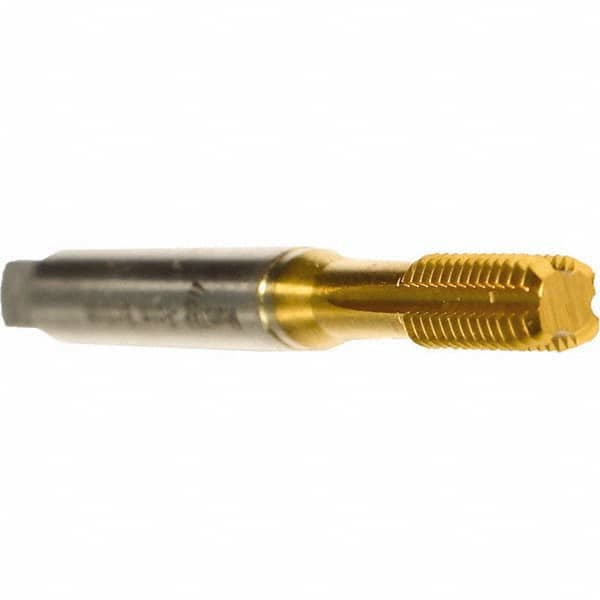

Emuge - #5-40 UNC 2B/3B Bottoming Thread Forming Tap - Cobalt, TiN Finish, 2.205" OAL, 0.433" Thread Length, Right Hand Thread, Series Druck
Item #: 52293610
Brand: Emuge
Model #: BU591410.5004
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #5-40 |
| Class of Fit | 2B/3B |
| Chamfer | Bottoming |
| Finish/Coating | TiN |
| Material | Cobalt |
| Overall Length (Decimal Inch) | 2.2050 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.4330 |
| Series/List | Druck |
| Tapping Depth (Decimal Inch) | 0.7090 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Shank Length (Decimal Inch) | 1.50 |
| Material Application | Aluminum Alloys; Copper; Copper Alloys; Stainless Steel; Steel |
