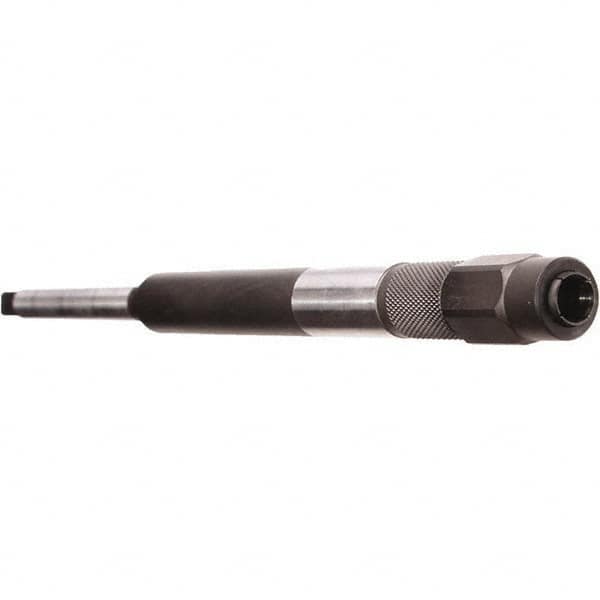

Emuge - M3 to M5mm Tap, 9.0551 Inch Overall Length, 0.3543 Inch Max Diameter, Tap Extension - 0.1378 Inch Tap Shank Diameter, 0.2362, 0.2953 Inch Extension Shank Diameter, 0.1929 Inch Extension Square Size, 22mm Tap Depth, Through Coolant
Item #: 52301231
Brand: Emuge
Model #: FZ112610.02
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Tap Size (mm) | M3 |
| Maximum Tap Size (mm) | M5 |
| Overall Length (mm) | 230.00 |
| Tap Shank Diameter (Decimal Inch) | 0.1378 |
| Tap Shank Diameter (mm) | 4 |
| Maximum Diameter (Decimal Inch) | 0.3543 |
| Tap Square Size (Decimal Inch) | 0.1063 |
| Tap Square Size (mm) | 3 |
| Shank Diameter (Decimal Inch) | 0.2362; 0.2953 |
| Extension Square Size (Decimal Inch) | 0.1929 |
| Depth Tap Enters (mm) | 22 |
| Extension Opening Outside Diameter (mm) | 8 |
| Extension Opening Outside Diameter (Decimal Inch) | 0.3150 |
| Through Coolant | Yes |
