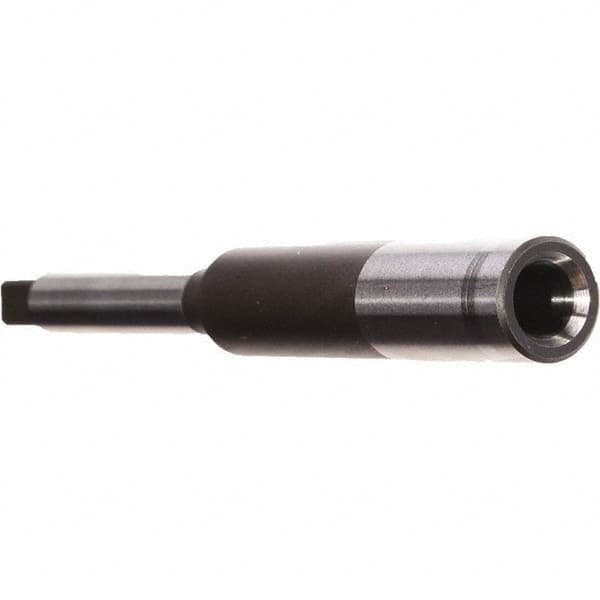

Emuge - 16mm Shank Diam, 16mm Hole Diam, Straight Shank Shrink Fit Tool Holder & Adapter - 22mm Nose Diam, 49mm Clamping Depth, Through Coolant
Item #: 52351145
Brand: Emuge
Model #: FZ131500.13
Exact Tooling IR#: 04
Features and Benefits
Straight shank toolholders can be used to extend the reach of the cutting tool as well as machining within tight clearances.
| Product Specifications | |
|---|---|
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.00 |
| Hole Diameter (Decimal Inch) | 0.6299 |
| Hole Diameter (mm) | 16.00 |
| Nose Diameter (mm) | 22.00 |
| Nose Diameter (Decimal Inch) | 0.8661 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 49.00 |
| Clamping Depth (Decimal Inch) | 1.9291 |
| Overall Length (mm) | 180.00 |
| Overall Length (Decimal Inch) | 7.0866 |
