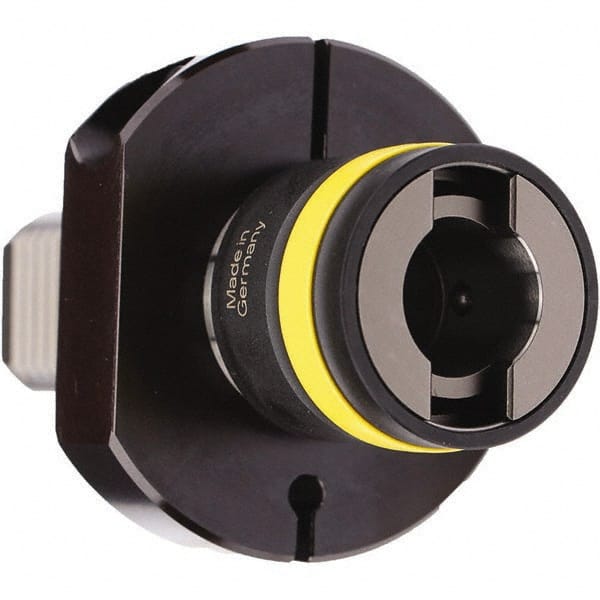

Emuge - 30mm Straight Shank Diam Tension & Compression Tapping Chuck - M3 Min Tap Capacity, 57mm Projection, Size 1 Adapter, Quick Change
Item #: 52356342
Brand: Emuge
Model #: F3301431
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 30.00 |
| Shank Diameter (Decimal Inch) | 1.1811 |
| Minimum Tap Capacity (mm) | M3 |
| Projection (Decimal Inch) | 2.2441 |
| Projection (mm) | 57.00 |
| Quick Change | Yes |
| Hole Diameter (mm) | 19.00 |
| Adapter Size | 1 |
| Holder Series | KSN1 |
| Nose Diameter (mm) | 66.00 |
| Nose Diameter (Decimal Inch) | 2.5984 |
| Tension (mm) | 8.00 |
| Compression (Decimal Inch) | 0.1969 |
| Compression (mm) | 5.00 |
| Overall Length (mm) | 112.00 |
| Overall Length (Decimal Inch) | 4.4095 |
| Through Coolant | No |
