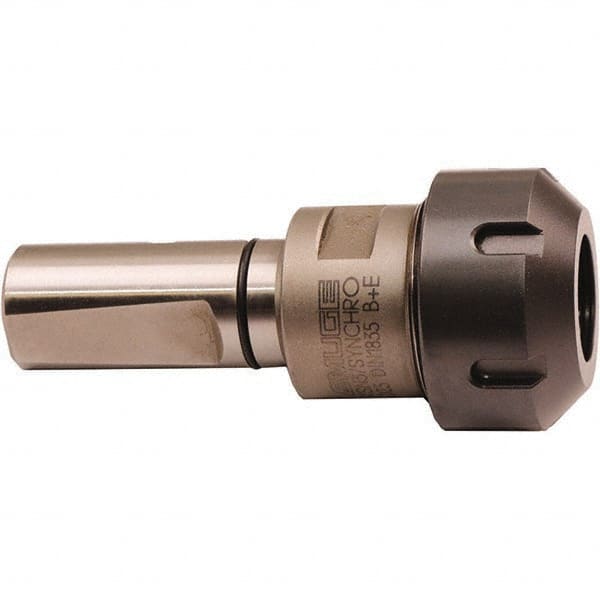

Emuge - DIN69871-40 Taper Shank Rigid Tapping Adapter - M4 Min Tap Capacity, 68mm Projection, Through Coolant
Item #: 52356953
Brand: Emuge
Model #: F3131651.1.24
Exact Tooling IR#: 04
Features and Benefits
Rigid or solid tapping styles are used for general purpose CNC machining. The rigid tapping cycle synchronizes the machine and spindle rotation to match a specific thread pitch. It is used at higher speeds, but does not compensate for length during the taping cycle.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Rigid |
| Shank Type | Taper Shank |
| Taper Size | DIN69871-40 |
| Minimum Tap Capacity (mm) | M4 |
| Projection (Decimal Inch) | 2.6772 |
| Projection (mm) | 68.00 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | 4.50 |
| Minimum Collet Capacity (Decimal Inch) | 0.1772 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Maximum Collet Capacity (mm) | 10.00 |
| Collet System | ER Tap |
| Holder Series | KSN1/Synchro |
| Nose Diameter (mm) | 34.00 |
| Nose Diameter (Decimal Inch) | 1.3386 |
| Tap Depth (mm) | 29.00 |
| Overall Length (mm) | 136.40 |
| Overall Length (Decimal Inch) | 5.3701 |
| Through Coolant | Yes |
