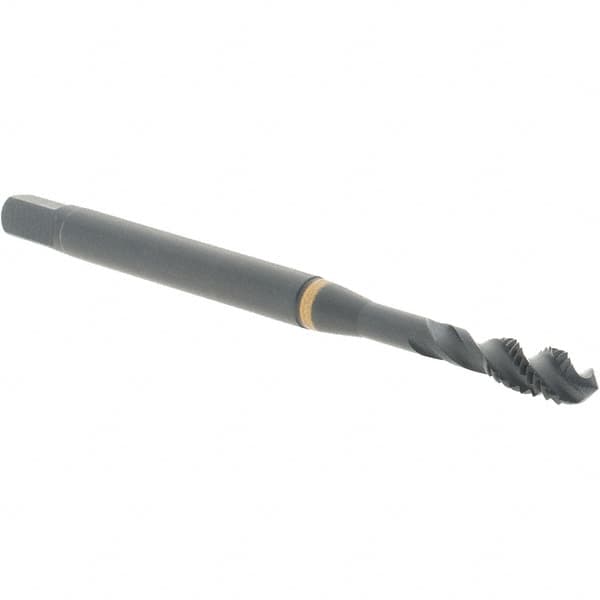

Guhring - M4x0.70 Metric 6H Modified Bottoming Spiral Flute Tap - Cobalt, Oxide Finish, 63mm OAL, Right Hand Flute, Right Hand Thread, D4, Series 5734
Item #: 52362142
Brand: Guhring
Model #: 9057340040000
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M4x0.70 |
| Chamfer | Modified Bottoming |
| Class of Fit | 6H |
| Thread Limit | D4 |
| Material | Cobalt |
| Finish/Coating | Oxide |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.4803 |
| Overall Length (mm) | 63.00 |
| Helix Angle | 40 |
| Thread Standard | Metric |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.2953 |
| Thread Length (mm) | 7.50 |
| Flute Type | Fast Spiral |
| Series/List | 5734 |
| Neck Length (Decimal Inch) | 0.5315 |
| Tapping Depth (Decimal Inch) | 0.8268 |
| Tapping Depth (mm) | 21.00 |
| Shank Diameter (Decimal Inch) | 0.1772 |
| Shank Diameter (mm) | 4.50 |
| Material Application | Alloy Steel; Alloy Tool Steel; Aluminum Alloy; Case Hardened Steel; Cast Iron; Ductile Iron; Free Cutting Steel; Heat Treated Steel; Malleable Cast Iron; Stainless Steel; Structural Steel; Tool Steel |
