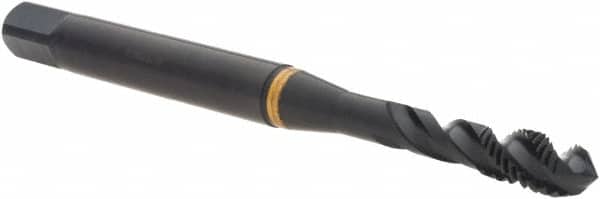

Spiral Point Tap: M5 x 0.8, Metric Coarse, Modified Bottoming, 6G, HSS-E, Oxide Finish 0.3346″ Thread Length, 2.7559″ OAL, Right Hand, D6, Series 5720
Item #: 52362332
Brand: Guhring
Model #: 9057200050000
Product Specifications
| Material | HSS-E |
| Coating/Finish | Oxide |
| Thread Size (mm) | M5 x 0.80 |
| Thread Standard | Metric Coarse |
| Thread Limit | D6 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.3346 |
| Thread Length (Mm) ( - 3 Decimals) | 8.50 |
| Overall Length (Decimal Inch) | 2.7559 |
| Overall Length (mm) | 70.00 |
| Chamfer | Modified Bottoming |
| Oversize | No |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Neck Length (Decimal Inch) | 0.6496 |
| Tapping Depth (mm) | 25.00 |
| Square Size (Decimal Inch) | 0.1929 |
| Square Size (mm) | 4.90 |
| Material Application | Aluminum; Heat Treatable Steel; Stainless Steel; Case Hardened Steel; Cast Iron; Structural Steel; Tool Steel; Free Cutting Steel; Sulfured Steel; Aluminum Alloys |
| Series | 5720 |
| Coolant Through | No |
| Class Of Fit | 6G |
