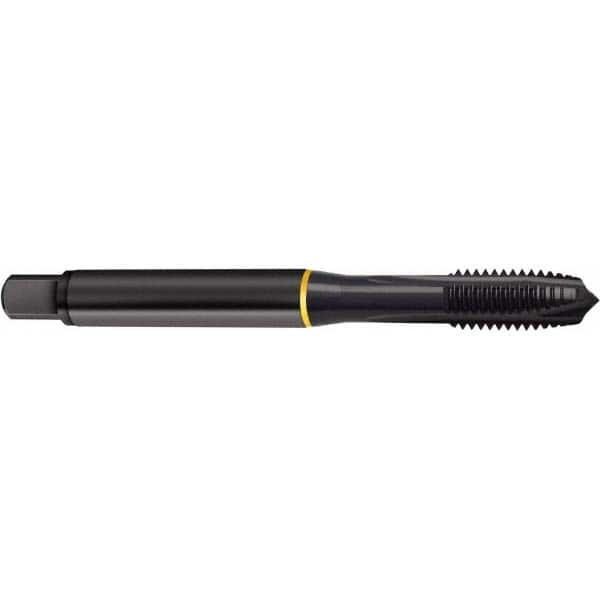

Spiral Point Tap: 1/4-28, UNF, 3 Flutes, Plug, 2B/3B, Cobalt, Oxide Finish 0.629″ Thread Length, 2-1/2″ OAL, Right Hand, H3, Series 4405
Item #: 52365384
Brand: Guhring
Model #: 9044053063500
Product Specifications
| Material | Cobalt |
| Coating/Finish | Oxide |
| Thread Size (Inch - 0 Decimals) | 1/4-28 |
| Thread Standard | UNF |
| Thread Limit | H3 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.6290 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Chamfer | Plug |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 0.5520 |
| Square Length (Decimal Inch) | 0.1910 |
| Square Size (Decimal Inch) | 0.1910 |
| Material Application | Aluminum; Heat Treatable Steel; Stainless Steel; Case Hardened Steel; Cast Iron; Structural Steel; Tool Steel; Free Cutting Steel; Sulfured Steel; Aluminum Alloys |
| Series | 4405 |
| Teeth per Inch | 28 |
| Coolant Through | No |
| Class Of Fit | 2B/3B |
| Number Of Flutes | 3 |
