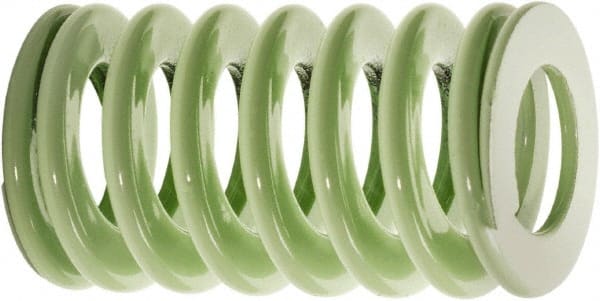

Associated Spring Raymond - 2" Hole Diam, 1" Rod Diam, 2-1/2" Free Length, Light Green Die Spring - 778 Lb Max Deflection, 1.5787" Max Deflection, Ultra Light Duty, Chromium Alloy Steel
Item #: 52371366
Brand: Associated Spring Raymond
Model #: 302-810-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 2-1/2 |
| Load Type | Ultra Light-Duty |
| Color | Light Green |
| Maximum Deflection Load (N) | 3460.72 |
| Maximum Deflection Load (Lb.) | 778.00 |
| Maximum Deflection (mm) | 40.10 |
| Maximum Deflection (Decimal Inch) | 1.5787 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
