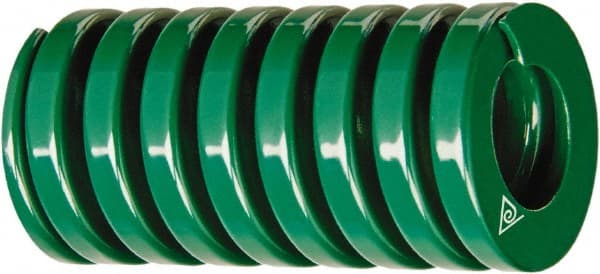

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 4-1/2" Free Length, Green Die Spring - 571 Lb Max Deflection, 2.311" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52371721
Brand: Associated Spring Raymond
Model #: 303-718-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 4-1/2 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 2539.93 |
| Maximum Deflection Load (Lb.) | 571.00 |
| Maximum Deflection (mm) | 58.70 |
| Maximum Deflection (Decimal Inch) | 2.3110 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
