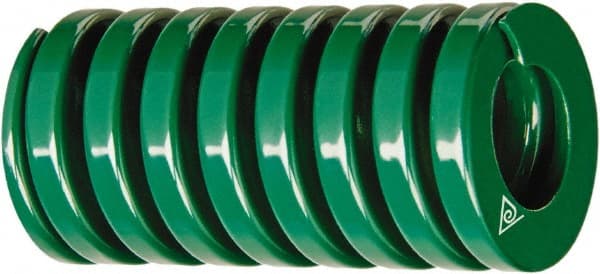

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 3" Free Length, Green Die Spring - 567 Lb Max Deflection, 1.4921" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52373636
Brand: Associated Spring Raymond
Model #: 303-712-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 3 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 2522.14 |
| Maximum Deflection Load (Lb.) | 567.00 |
| Maximum Deflection (mm) | 37.90 |
| Maximum Deflection (Decimal Inch) | 1.4921 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
