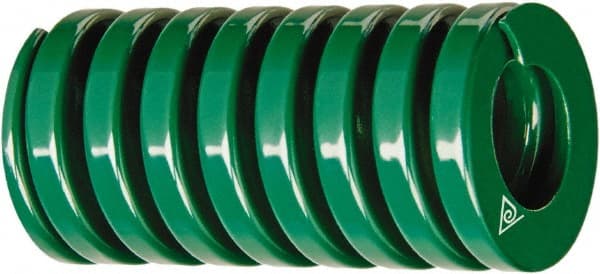

Associated Spring Raymond - 2" Hole Diam, 1" Rod Diam, 12" Free Length, Green Die Spring - 1097 Lb Max Deflection, 7.1811" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52375953
Brand: Associated Spring Raymond
Model #: 303-848-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 12 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 4879.70 |
| Maximum Deflection Load (Lb.) | 1097.00 |
| Maximum Deflection (mm) | 182.40 |
| Maximum Deflection (Decimal Inch) | 7.1811 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
