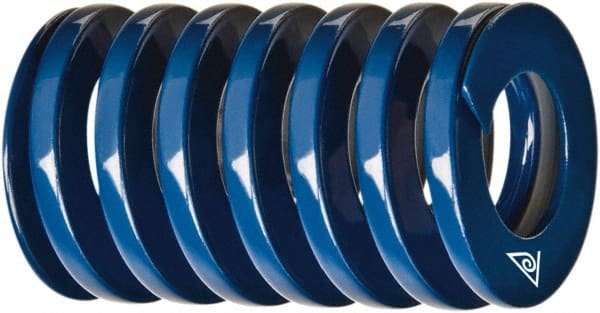

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 6" Free Length, Blue Die Spring - 722 Lb Max Deflection, 2.4882" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 52376365
Brand: Associated Spring Raymond
Model #: 304-724-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 6 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 3211.62 |
| Maximum Deflection Load (Lb.) | 722.00 |
| Maximum Deflection (mm) | 63.20 |
| Maximum Deflection (Decimal Inch) | 2.4882 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
