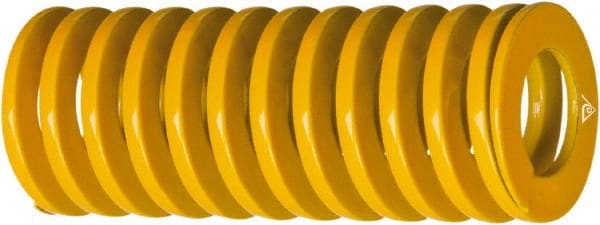

Associated Spring Raymond - 2" Hole Diam, 1" Rod Diam, 4" Free Length, Yellow Die Spring - 3034 Lb Max Deflection, 1.3661" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Item #: 52376472
Brand: Associated Spring Raymond
Model #: 306-816-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 4 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (N) | 13495.90 |
| Maximum Deflection Load (Lb.) | 3034.00 |
| Maximum Deflection (mm) | 34.70 |
| Maximum Deflection (Decimal Inch) | 1.3661 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
