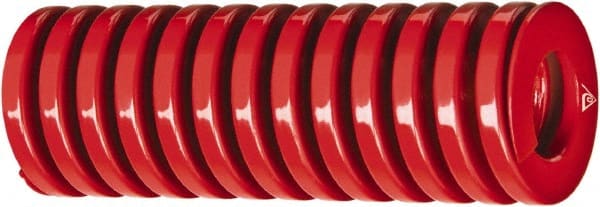

Associated Spring Raymond - 2" Hole Diam, 1" Rod Diam, 5" Free Length, Red Die Spring - 1901 Lb Max Deflection, 1.7598" Max Deflection, Heavy Duty, Chromium Alloy Steel
Item #: 52379971
Brand: Associated Spring Raymond
Model #: 305-820-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (mm) | 127.00 |
| Free Length (Inch) | 5 |
| Load Type | Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (N) | 8456.07 |
| Maximum Deflection Load (Lb.) | 1901.00 |
| Maximum Deflection (mm) | 44.70 |
| Maximum Deflection (Decimal Inch) | 1.7598 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
