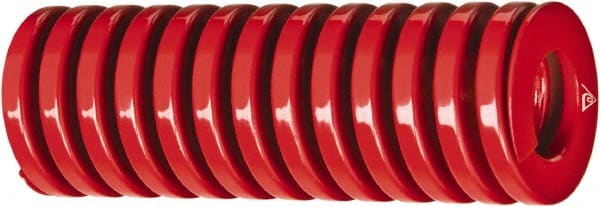

Associated Spring Raymond - 2" Hole Diam, 1" Rod Diam, 3" Free Length, Red Die Spring - 1981 Lb Max Deflection, 1.0354" Max Deflection, Heavy Duty, Chromium Alloy Steel
Item #: 52380086
Brand: Associated Spring Raymond
Model #: 305-812-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 3 |
| Load Type | Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (N) | 8811.93 |
| Maximum Deflection Load (Lb.) | 1981.00 |
| Maximum Deflection (mm) | 26.30 |
| Maximum Deflection (Decimal Inch) | 1.0354 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
