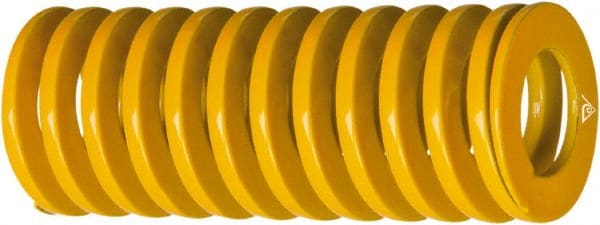

Associated Spring Raymond - 2" Hole Diam, 1" Rod Diam, 12" Free Length, Yellow Die Spring - 2843 Lb Max Deflection, 4.1496" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Item #: 52380847
Brand: Associated Spring Raymond
Model #: 306-848-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 12 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (N) | 12646.30 |
| Maximum Deflection Load (Lb.) | 2843.00 |
| Maximum Deflection (mm) | 105.40 |
| Maximum Deflection (Decimal Inch) | 4.1496 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
