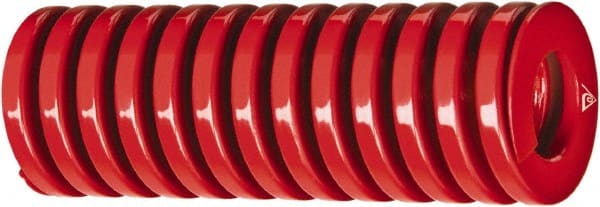

Associated Spring Raymond - 1/2" Hole Diam, 9/32" Rod Diam, 2-1/2" Free Length, Red Die Spring - 100 Lb Max Deflection, 1.1496" Max Deflection, Heavy Duty, Chromium Alloy Steel
Item #: 52382793
Brand: Associated Spring Raymond
Model #: 305-210-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1/2 |
| Rod Diameter (Inch) | 9/32 |
| Free Length (Inch) | 2-1/2 |
| Load Type | Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (N) | 444.82 |
| Maximum Deflection Load (Lb.) | 100.00 |
| Maximum Deflection (mm) | 29.20 |
| Maximum Deflection (Decimal Inch) | 1.1496 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
