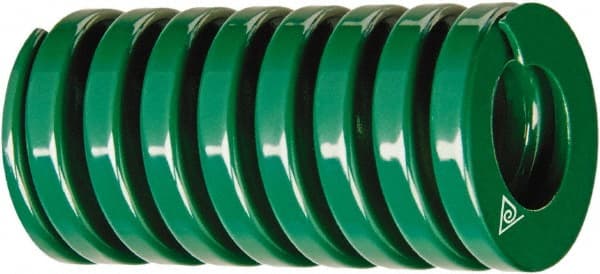

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 3-1/2" Free Length, Green Die Spring - 584 Lb Max Deflection, 1.7874" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52383692
Brand: Associated Spring Raymond
Model #: 303-714-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 3-1/2 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 2597.76 |
| Maximum Deflection Load (Lb.) | 584.00 |
| Maximum Deflection (mm) | 45.40 |
| Maximum Deflection (Decimal Inch) | 1.7874 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
