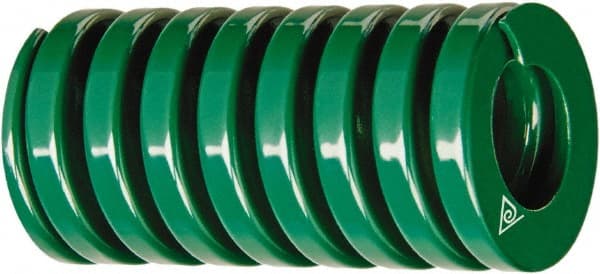

Associated Spring Raymond - 2" Hole Diam, 1" Rod Diam, 5-1/2" Free Length, Green Die Spring - 1194 Lb Max Deflection, 3.315" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52384393
Brand: Associated Spring Raymond
Model #: 303-822-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 5-1/2 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 5311.18 |
| Maximum Deflection Load (Lb.) | 1194.00 |
| Maximum Deflection (mm) | 84.20 |
| Maximum Deflection (Decimal Inch) | 3.3150 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
