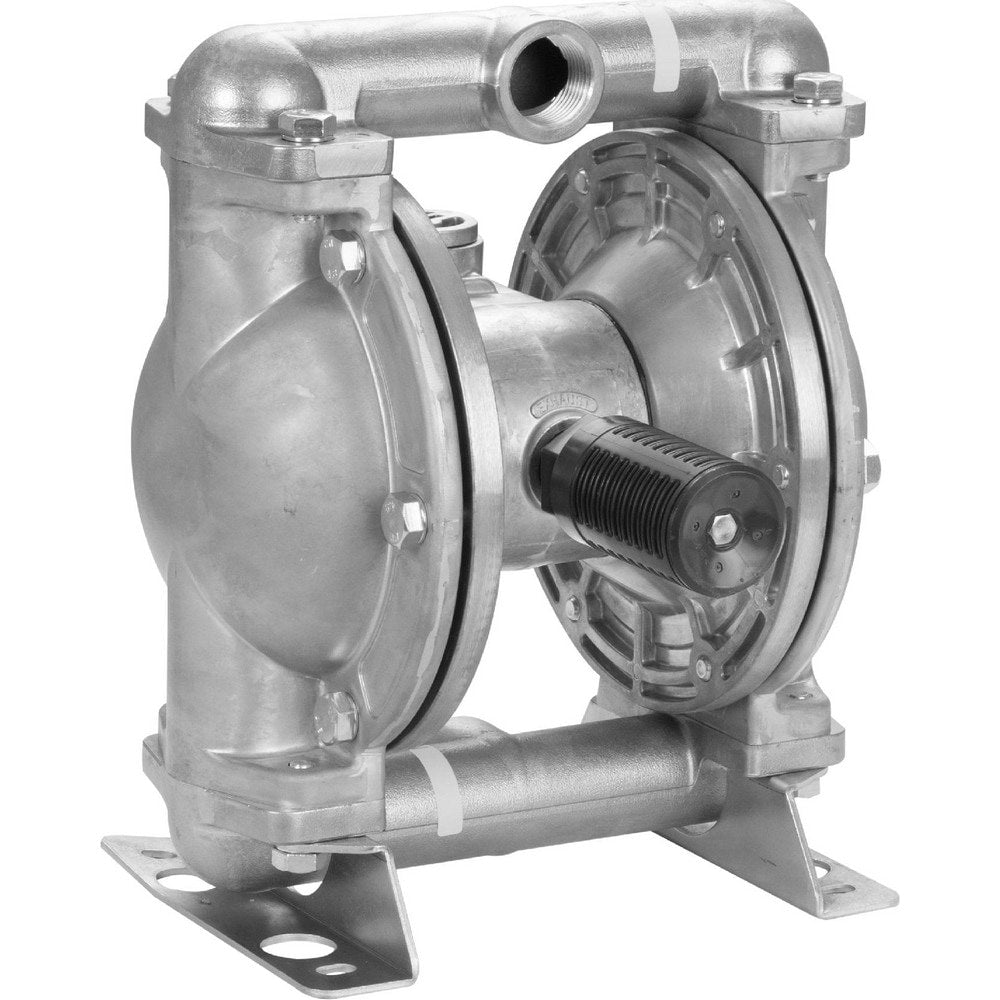

Air Operated Double Diaphragm Pump for Waste Oil Handling - 1"
Item #: 96668074
Brand: PRO-LUBE
Model #: AODD/25/BAH/N
Product Specifications
| Maximum Flow Rate | 37.0 |
| Maximum Flow Rate (Gpm - 2 Decimals) | 37.00 |
| Pump Type | Air Operated Pump; Diaphragm Pump |
| Maximum Working Pressure (Psi - 3 Decimals) | 100.000 |
| Maximum Working Pressure | 100.000 |
| Maximum Particle Size | .125 |
| Housing Material | Aluminum |
| Thread Type | NPT |
| Inlet Size | 1 |
| Inlet/Outlet NPT | 1 |
| Cubic Feet Per Minute | 31.8 |
| Diaphragm Material | Hytrel |
| Ball Material | TPEE |
| Check Seat Material | Buna-N |
| Port Size | 1 |
| Port Type | Female |
| Body Material | Aluminum |
| Length (Decimal Inch - 4 Decimals) | 10.0400 |
| Height (Decimal Inch) | 12.440000 |
| Maximum Temperature (F) ( - 0 Decimals) | 176.000 |
| Maximum Solid Size (Inch) | 1/8 |
| Air Inlet Size (Inch) | 3/8 |
| Width (Decimal Inch - 4 Decimals) | 8.2700 |
| Contents | 1pc Double Diaphragm Pump with Instruction Manual |
| Maximum Cubic Feet Per Minute (CFM) | 31.80 |
| UNSPSC Code | 40151548 |
