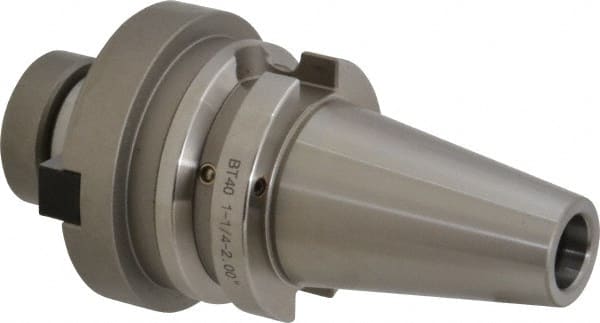

Accupro - BT40 Taper Shank 1-1/4" Pilot Diam Shell Mill Holder - 2" Flange to Nose End Projection, 2.88" Nose Diam, 5/8-18 Lock Screw, Through-Spindle & DIN Flange Coolant
Item #: 52463676
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Pilot Diameter (Inch) | 1-1/4 |
| Projection Flange to Nose End (Decimal Inch) | 2.0000 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 2.8800 |
| Shell Mill Cutting Diameter Range (Inch) | 3 - 3-1/2 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Lock Screw Thread Size | 5/8-18 |
