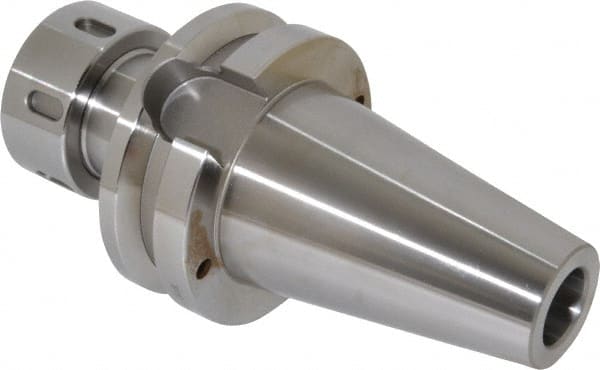

Accupro - 3/32" to 1" Capacity, 4" Projection, BT50 Taper Shank, TG/PG 100 Collet Chuck - 0.0002" TIR, Through-Spindle & DIN Flange Coolant
Item #: 52463890
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Single Angle |
| Collet Series | TG/PG 100 |
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Projection (Decimal Inch) | 4.0000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 3/32 |
| Maximum Collet Capacity (Inch) | 1 |
| PSC Code | 5136 |
| Balanced to (RPM) | 15000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 2.5000 |
