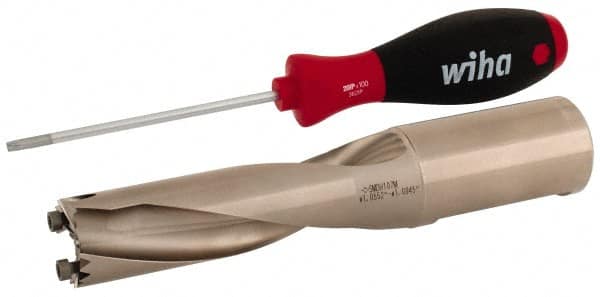

Sumitomo - 26.81 to 27.8mm Diam, 3xD, 3.701" Max Depth, 1-1/4" Shank Diam, 4.517" Flute, 6.89" OAL, Replaceable Tip Drill - Series SMD
Item #: 52467735
Brand: Sumitomo
Model #: 5L00W1F
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 26.81 |
| Minimum Drill Diameter (Decimal Inch) | 1.0555 |
| Maximum Drill Diameter (mm) | 27.80 |
| Maximum Drill Diameter (Decimal Inch) | 1.0945 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.7010 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (Decimal Inch) | 4.5170 |
| Body Length (Decimal Inch) | 4.5170 |
| Overall Length (Decimal Inch) | 6.8900 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 2.3750 |
