Turning Insert: RCGT21.5MOFN27 CTPX715, Carbide
Item #: 26291922
Brand: Ceratizit
Model #: 7026670200
Product Specifications
| ANSI Insert Code | RCGT21.5M0 |
| ISO Insert Code | RCGT |

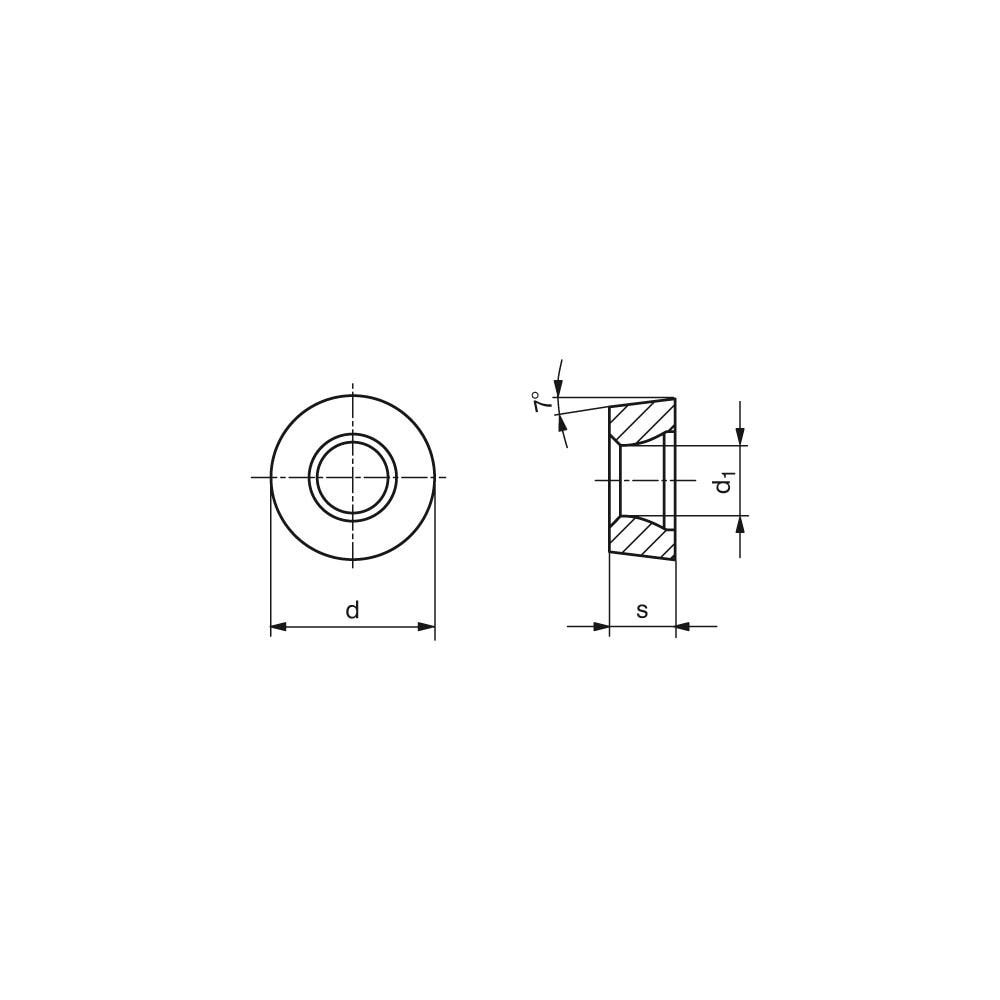

| Relief Angle | 7 |
| Insert Style | RCGT |
| Included Angle | 0 |
| Manufacturer Grade | CTPX715 |
| Coating/Finish | AlTiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | RCGT |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | R |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Iso Code | RCGT 0602MOFN-27 CTPX715 |
| Chip Breaker | 27 |
| ANSI Size Code | 21.5M0 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.5 |
