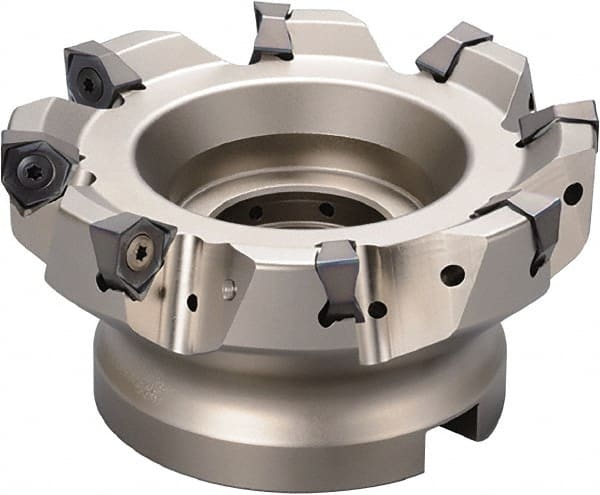

Kyocera - 5 Inserts, 3" Cut Diam, 0.551" Arbor Diam, 0.315" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 1.968" High, WNMU 0806 Insert Compatibility, Through Coolant, Series M-Six
Item #: 52563590
Brand: Kyocera
Model #: 8606132
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.5510 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 1.9680 |
| Insert Compatibility | WNMU 0806 |
| Series | M-Six |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | MFWN |
| Number of Flutes | 5 |
| Cutting Rake Angle | -9 |
| Rake | Negative |
| Keyway Width (Decimal Inch) | 0.3810 |
| Keyway Depth (Decimal Inch) | 0.2360 |
| Pitch | Fine |
| Counterbore Diameter (Decimal Inch) | 0.8750 |
| Complete Insert Compatibility | WNEU 080608EN-GL; WNMU 080608EN-GH; WNMU 080608EN-GM; WNMU 080608EN-SM |
