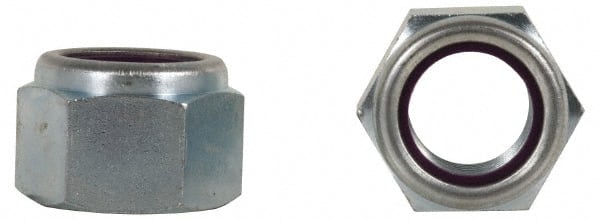

Value Collection - 1-14 UNF Grade B Hex Lock Nut with Nylon Insert - 1-7/16" Width Across Flats, 1-3/64" High, Zinc-Plated Finish
Item #: 52591781
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Hex lock nuts are the most common type of lock nut. They have six uniform sides that create a flat bearing surface.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Hex Lock Nut |
| Material | Steel |
| Thread Size | 1-14 |
| Height (Inch) | 1-3/64 |
| Height (Decimal Inch) | 1.0469 |
| Material Grade | Grade B |
| Finish/Coating | Zinc-Plated |
| Thread Direction | Right Hand |
| Locking Style | Insert |
| Insert Material | Nylon |
| Width Across Flats (Inch) | 1-7/16 |
| Width Across Flats (Decimal Inch) | 1.427 to 1.440 |
| Thread Standard | UNF |
| Military Specification | Does Not Meet Military Specifications |
