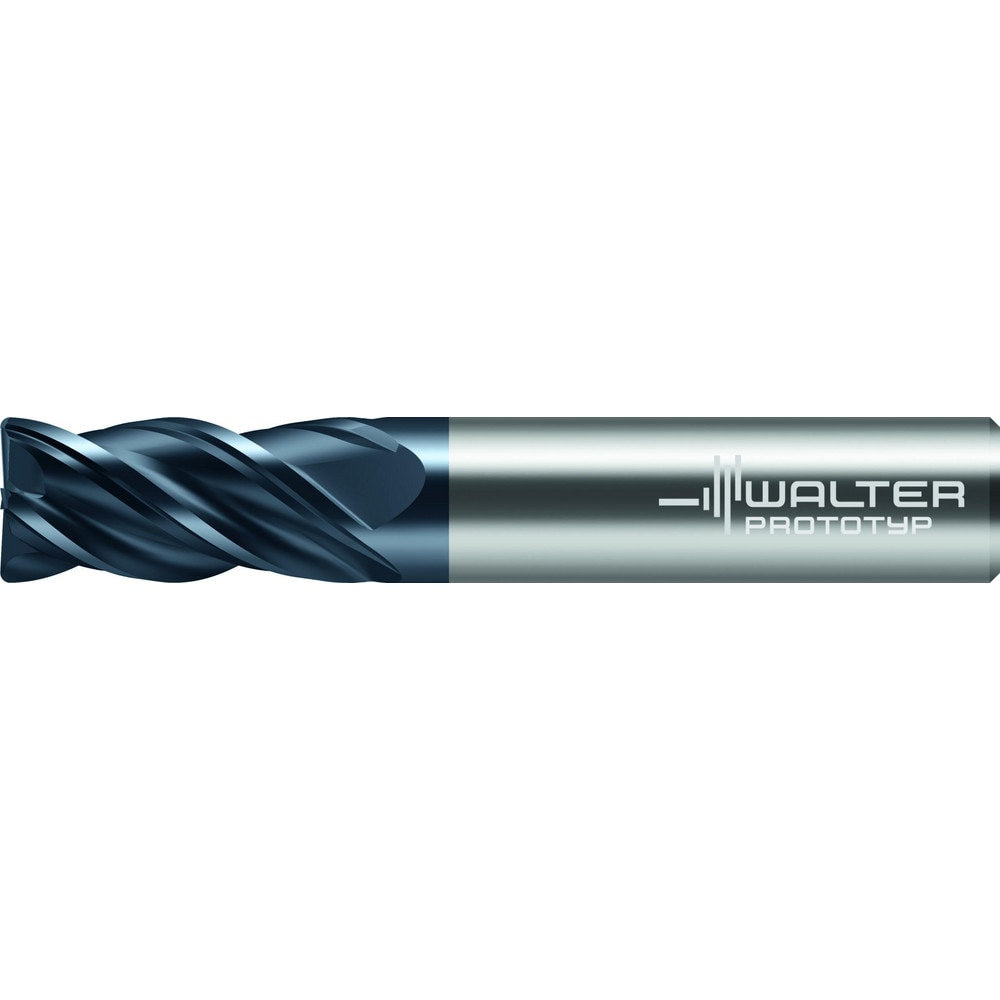

Corner Radius End Mill: 1" Dia, 3-1/4" LOC, 0.2500" Radius, 4 Flute, Solid Carbide
Item #: 09083395
Brand: Walter-Prototyp
Model #: 8417406
Product Specifications
| Mill Diameter (Inch) | 1 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | nACRo |
| Overall Length (Inch) | 6 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.2500 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Chipbreaker | No |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Reach Length (Decimal Inch) | 3.9134 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Superalloys & Titanium |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Series | MA377.A-4-R |
| Proprietary Coating Designation | WJ30EN |
| Manufacturers Catalog Number | MA377.25.4A4L635J-WJ30EN |
