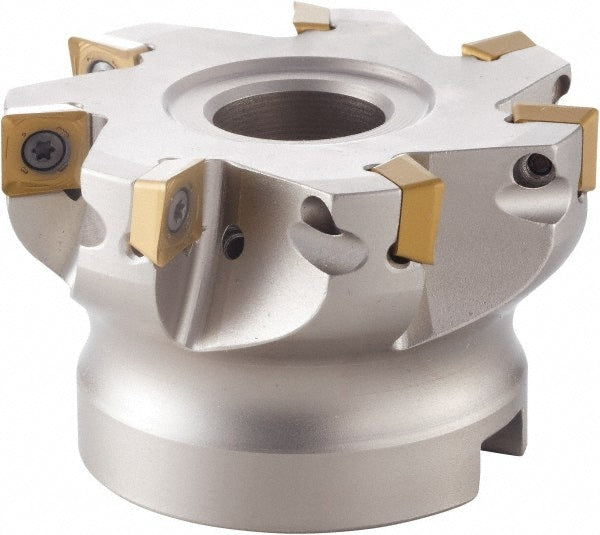

3" Cut Diam, 1" Arbor Hole Diam, 1.968" Max Depth, Indexable Square-Shoulder Face Mill
Item #: 55704316
Brand: OSG
Model #: 52901002
Product Specifications
| Maximum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (mm) | 76.20 |
| Maximum Depth of Cut (Decimal Inch) | 1.9680 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | SD_T09? |
| Cutter Style | PSF |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | 52901 |
| Overall Height (Decimal Inch) | 1.9680 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Hub Diameter (Decimal Inch) | 2.3620 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Keyway Depth (Decimal Inch) | 0.2360 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 9 |
| Number Of Flutes | 9 |
| Maximum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (mm) | 76.20 |
| Maximum Depth of Cut (Decimal Inch) | 1.9680 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | SD_T09? |
| Cutter Style | PSF |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | 52901 |
| Overall Height (Decimal Inch) | 1.9680 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Hub Diameter (Decimal Inch) | 2.3620 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Keyway Depth (Decimal Inch) | 0.2360 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 9 |
| Number Of Flutes | 9 |
| MSC Part # | 55704316 |
| Mfr Part # | 52901002 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
