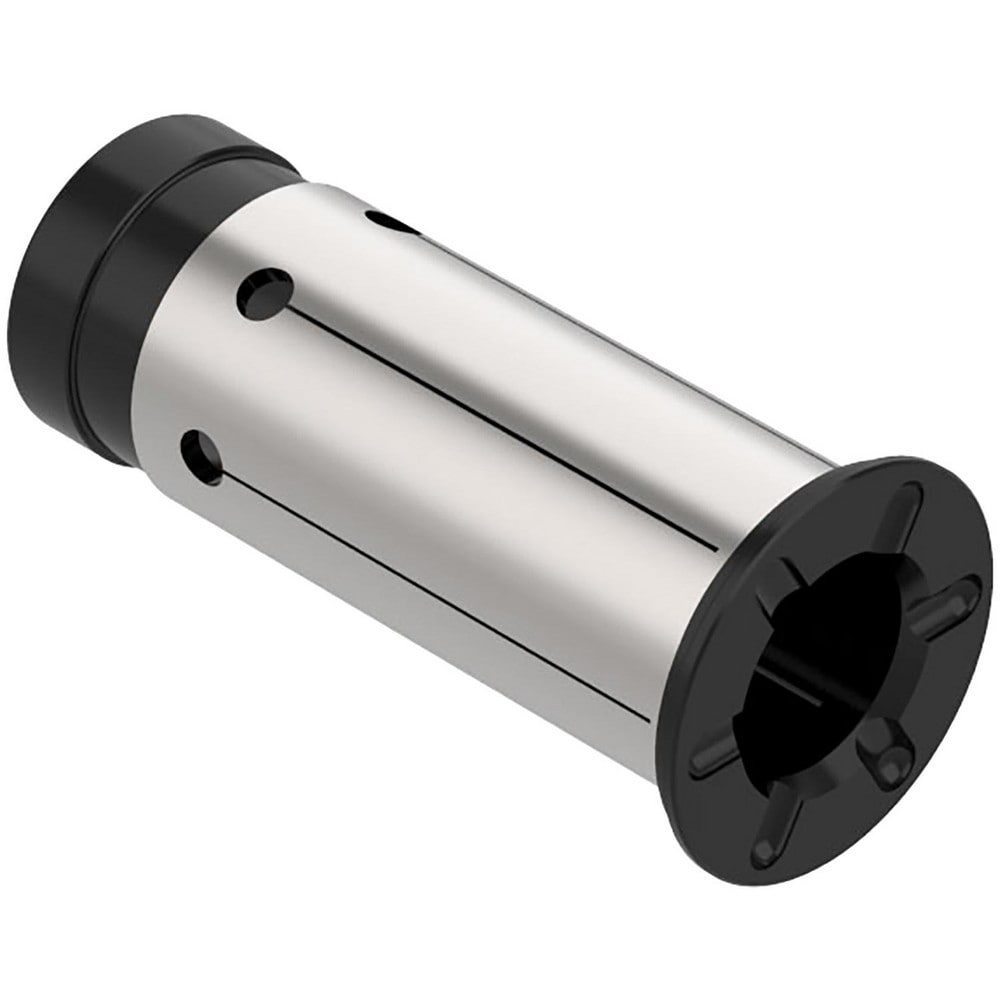

Hydraulic Chuck Sleeves; Inside Diameter (Decimal Inch): 0.5000; Inside Diameter (mm): 12.7000; Inside Diameter (Inch): 1/2; Outside Diameter (Decimal Inch
Item #: 74010315
Brand: Allied Machine and Engineering
Model #: SLVHY-050I-075I
Product Specifications
| Inside Diameter (Decimal Inch) | 0.5000 |
| Inside Diameter (mm) | 12.7000 |
| Inside Diameter (Inch) | 1/2 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 19.0500 |
| Outside Diameter (Inch) | 0.7500 |
| Outside Diameter (mm) | 0.7500 |
| Head Diameter (Decimal Inch) | 0.9449 |
| Head Diameter (mm) | 24.0000 |
| Through Coolant | No |
| Sleeve Type | Slotted |
| Material | Steel |
| Length Under Head (Decimal Inch) | 1.9882 |
| Length Under Head (mm) | 50.50 |
| UNSPSC Code | 27112800 |
| Inside Diameter (Decimal Inch) | 0.5000 |
| Inside Diameter (mm) | 12.7000 |
| Inside Diameter (Inch) | 1/2 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 19.0500 |
| Outside Diameter (Inch) | 0.7500 |
| Outside Diameter (mm) | 0.7500 |
| Head Diameter (Decimal Inch) | 0.9449 |
| Head Diameter (mm) | 24.0000 |
| Through Coolant | No |
| Sleeve Type | Slotted |
| Material | Steel |
| Length Under Head (Decimal Inch) | 1.9882 |
| Length Under Head (mm) | 50.50 |
| UNSPSC Code | 27112800 |
| MSC Part # | 74010315 |
| Mfr Part # | SLVHY-050I-075I |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
