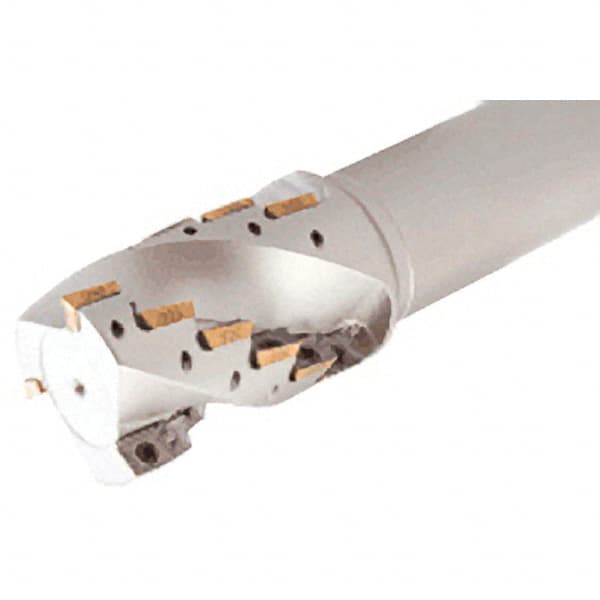

Iscar - 40mm Cut Diam, 55mm Max Depth of Cut, 32mm Shank Diam, 125mm OAL, Indexable Square Shoulder Helical End Mill - Weldon Shank, 90° Lead Angle, Series Helimill
Item #: 52692902
Brand: Iscar
Model #: 3100866
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 125.00 |
| Overall Length/Projection (Decimal Inch) | 4.9213 |
| Lead Angle | 90 |
| Series | Helimill |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 55.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.1654 |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 3 |
| Head Length (mm) | 65.00 |
| Head Length (Decimal Inch) | 2.5591 |
| Weldon Flat | Yes |
