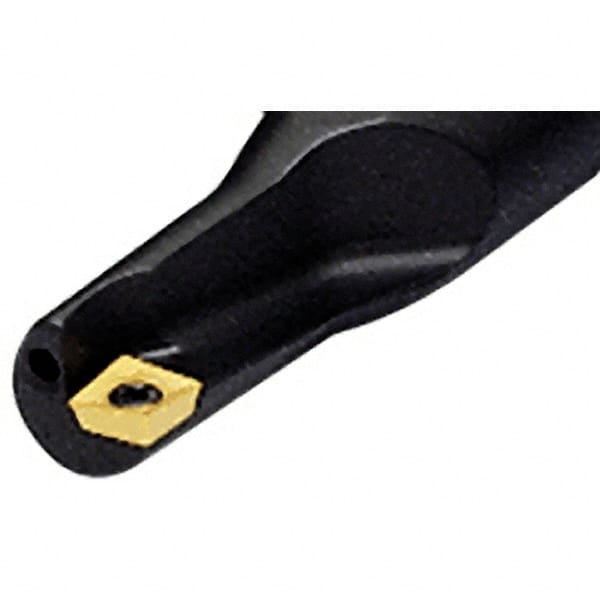

Iscar - 21mm Max Drill Depth, 16mm Diam, Indexable Insert Drill - 16mm Shank Diam, Straight Shank
Item #: 52693561
Brand: Iscar
Model #: 3601292
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A |
| Drill Diameter (mm) | 16.00 |
| Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Depth (mm) | 21.00 |
| Maximum Drill Depth (Decimal Inch) | 0.8268 |
| Shank Type | Straight |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Overall Length/Projection (mm) | 180.00 |
| Overall Length/Projection (Decimal Inch) | 7.0866 |
| Insert Compatibility | XOMT-DT |
| Flute Length (mm) | 31.00 |
| Flute Length (Decimal Inch) | 1.2205 |
| Body Length (Decimal Inch) | 1.2205 |
| Body Length (mm) | 31.00 |
| Series | Multifunction Tools |
