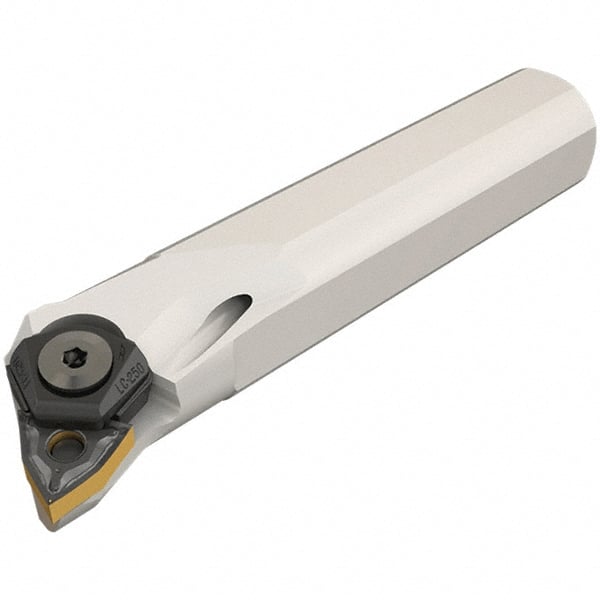

Iscar - 32mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, A-MWLN-W Indexable Boring Bar - 35mm Max Bore Depth, WNM.. 06.. Insert, Wedge Holding Method
Item #: 52693728
Brand: Iscar
Model #: 3601301
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MWLN-W |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 35.00 |
| Maximum Bore Depth (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | WNM.. 06.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Rake | Negative |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Rake Angle | -14 |
| Complete Insert Compatibility | WNMA 060404; WNMA 060408; WNMA 06T304; WNMA 06T308; WNMA 06T312; WNMG 060402-NF; WNMG 060404-GN; WNMG 060404-PP; WNMG 060404-TF; WNMG 060408-GN; WNMG 060408-PP; WNMG 060408-TF; WNMG 06T301-NF; WNMG 06T302-NF; WNMG 06T304-GN; WNMG 06T304-NF; WNMG 06T304-PP |
| Toolholder Material | Steel |
