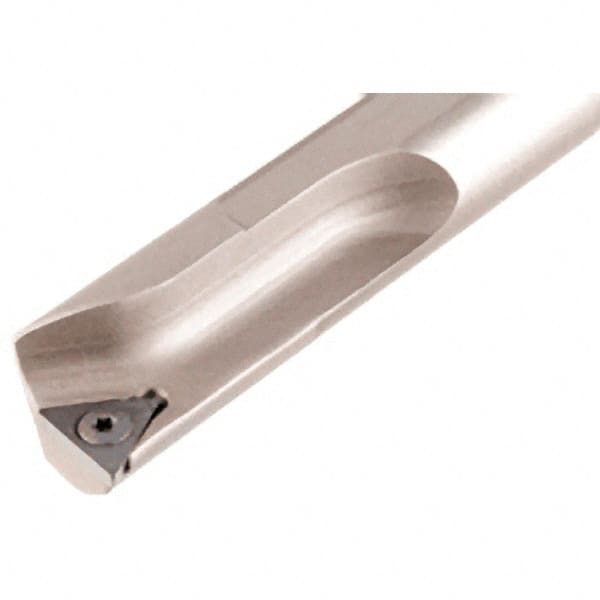

Iscar - 0.709" Min Bore Diam, 7" OAL, 5/8" Shank Diam, BBN Indexable Boring Bar - TP.. 32.. Insert, Screw Holding Method
Item #: 52693827
Brand: Iscar
Model #: 3601374
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | BBN |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.7090 |
| Overall Length (Decimal Inch) | 7.0000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | TP.. 32.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Positive |
| Center to Cutting Edge (Decimal Inch) | 0.3600 |
| Rake Angle | 5 |
| Complete Insert Compatibility | TPGB 321-60; TPGB 322-60; TPGH 321-L; TPGH 322-L; TPMT 321; TPMT 322 |
